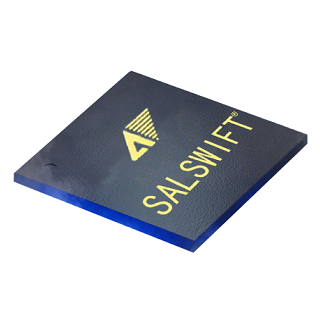

SALSWIFT 1

Video image, Consumer electronics, RISC-V

Product Brief

SF1 series FPSoC products are the first generation of "SWIFT" series launched by Anlogic Infotech.

SF1 has built-in high-performance RISC-V processor hardcore, DSC hard decoder module, PSRAM and PSRAM hardcore controllers. Positioned in markets of video processing and consumer electronics, it meets the diverse system needs of customers.


Product Table

Find 3 Results
Device DFFs LUTs DistributeRAM eRAM-9K eRAM-Total M18*18 PLL CPU DSI DSC PSRAM USER IO Package Methods Package Size
SF1N60VG81C 5824 5824 46K 26 234K 10 2 1 2 1 2 31 VFBGA81 4.5*4.5
SF1S60VG81C/E 5824 5824 46K 26 234K 10 2 1 2 1 2 31 VFBGA81 4.5*4.5
SF1S60CG121I 5824 5824 46K 26 234K 10 2 1 2 1 2 59 TFBGA121 9*9
  • Product Features
  • Application Scenarios
  • Device Evaluation Board
  • Materials Download

Product Features

  • Equivalent logical resource
    Equivalent to 6K LUTs logical resource
  • CPU hardcore
    Built-in RISC-V CPU hardcore with three-stage pipeline; maximum main frequency is 160 MHz
  • MIPI hardcore controllers
    2 Lane MIPI D-PHY, with maximum line rate of 2.2Gbps
  • PSRAM hardcore
    Built-in 64/128Mb PSRAM, clock rate supports up to 200MHz

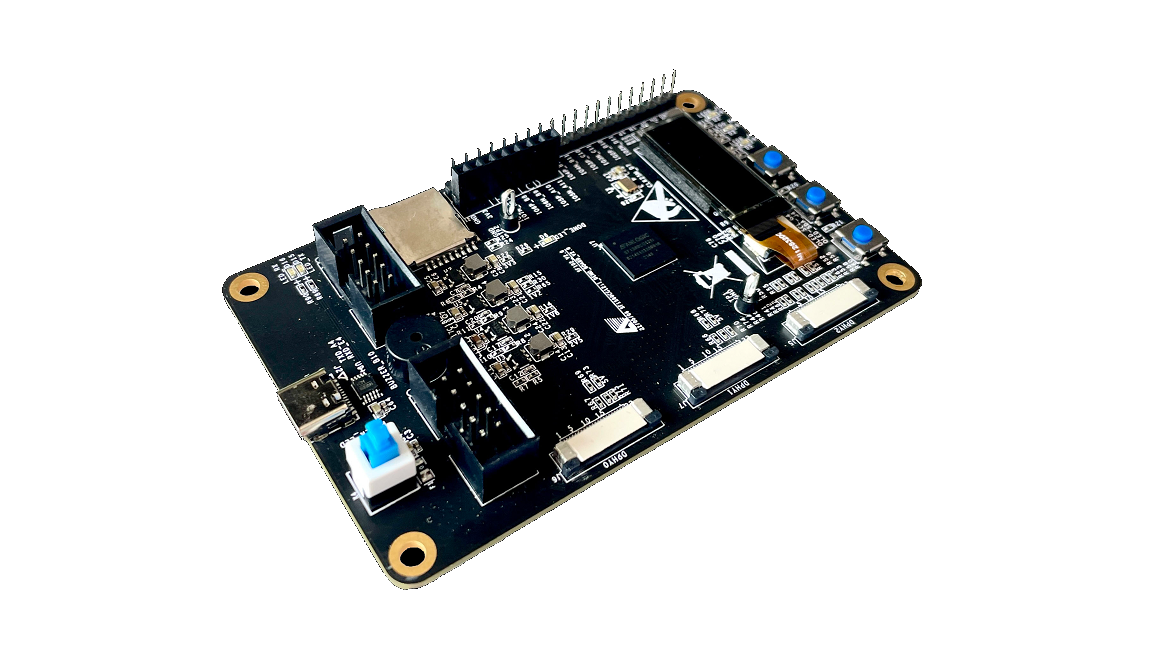

Device Evaluation Board

Materials Download
