AL3

Industrial control, Communication, Display driver

Product Brief

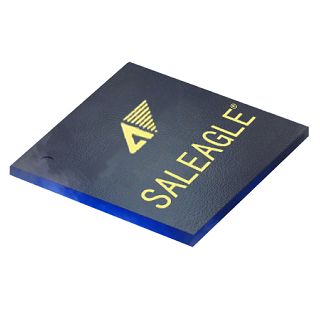

AL3 is one of the “EAGLE” series launched by Anlogic Infotech, featuring low power consumption, low cost and high performance. It is endowed with rich logic resources, DSP, BRAM, high-speed differential IO, and other resources with powerful pin-compatible replacement performance.
It can effectively help users to improve performance and reduce cost in the fields of industrial control, communication access, and display driver.


Product Table

Find 3 Results
Device DFFs LUTs DistributeRAM eRAM-9K eRAM-32K eRAM-Total M18*18 PLL DDR/SDR RAM USER IO Package Methods Package Size
AL3S10NG88 8640 8640 69120 48 2 496K 3 2 2M*32 60 QFN88 10*10
AL3S10LG144 8640 8640 69120 48 2 496K 3 2 2M*32 111 LQFP144 16*16
AL3A10BG256 8640 8640 69120 48 2 496K 3 2 \ 184 FBGA256 17*17
  • Product Features
  • Application Scenarios
  • Materials Download

Product Features

  • Low power consumption
    65 nm low-power technology, static power consumption as low as 4 mA
  • Flexible logical structure
    8640 LUTs, 60-184 user IOs
  • High performance IO
    Support hot-swapping and multiple single-ended and differential standards
