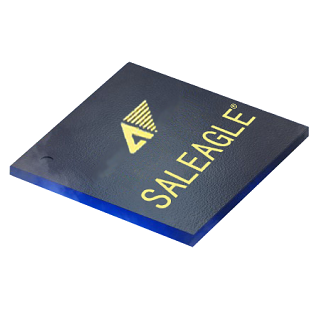

SALEAGLE 4

Industrial control, Communication, Display driver

Product Brief

EG4 is one of the "EAGLE" series launched by Anlogic Infotech, featuring low power consumption, low cost and high performance. It is endowed with rich logic resources, DSP, BRAM, high-speed differential IO, and other resources with powerful pin-compatible replacement performance.

It can effectively help users to improve performance and reduce cost in the fields of industrial control, communication access, and display driver.


Product Table

Find 6 Results
Device DFFs LUTs DistributeRAM eRAM-9K eRAM-32K eRAM-Total M18*18 PLL DDR/SDRRAM ADC USER IO Package Methods Package Size
EG4S20CG324 19600 19600 154k 64 16 1088k 29 4 2M*32 1 215 LFBGA324 15*15
EG4S20BG256B 19600 19600 154k 64 16 1088k 29 4 \ 1 193 LFBGA256 17*17
EG4X15BG256 14720 14720 115k 52 8 724k 24 4 \ 1 193 LFBGA256 17*17
EG4D20EG176/B 19600 19600 154k 64 16 1088k 29 4 8M*16 1 135 ETQFP176 20*20
EG4A15BG256 14720 14720 115k 52 8 724k 24 4 \ 1 196 LFBGA256 17*17
EG4X20LG144 19600 19600 154k 64 16 1088k 29 4 \ 1 107 LQFP144 20*20
  • Product Features
  • Application Scenarios
  • Materials Download

Product Features

  • Low-power technology
    55 nm low-power technology, static power consumption as low as 5 mA
  • Equivalent logical resource
    Equivalent to 23.4K LUTs logical resource
  • Large number of users
    Up to 196 user IOs
  • Support high-speed interface
    Support up to 1 Gbps high-speed LVDS interface
  • Support large device packaging
    Allow devices to be packaged up to 324 pins
  • Built-in special devices
    Built-in 64M bit SDR SDRAM or 128M bit DDR SDRAM (for some devices)
